Static Care Universal Snap Kit for ESD Table, ESD Floor Mats – 10mm Snaps – Easy to Install – Fits All Sizes - Pack of 2

Price:

$10.84

Brand: MRO Essentials

Type: Ground Hardware

Availability: Many In Stock

Default Title

Quantity:

Install a 10mm Socket or Stud Snap into Most Materials with the Universal Snap Kit. Comes with a Male or Female Socket and Two Lengths of Screws.

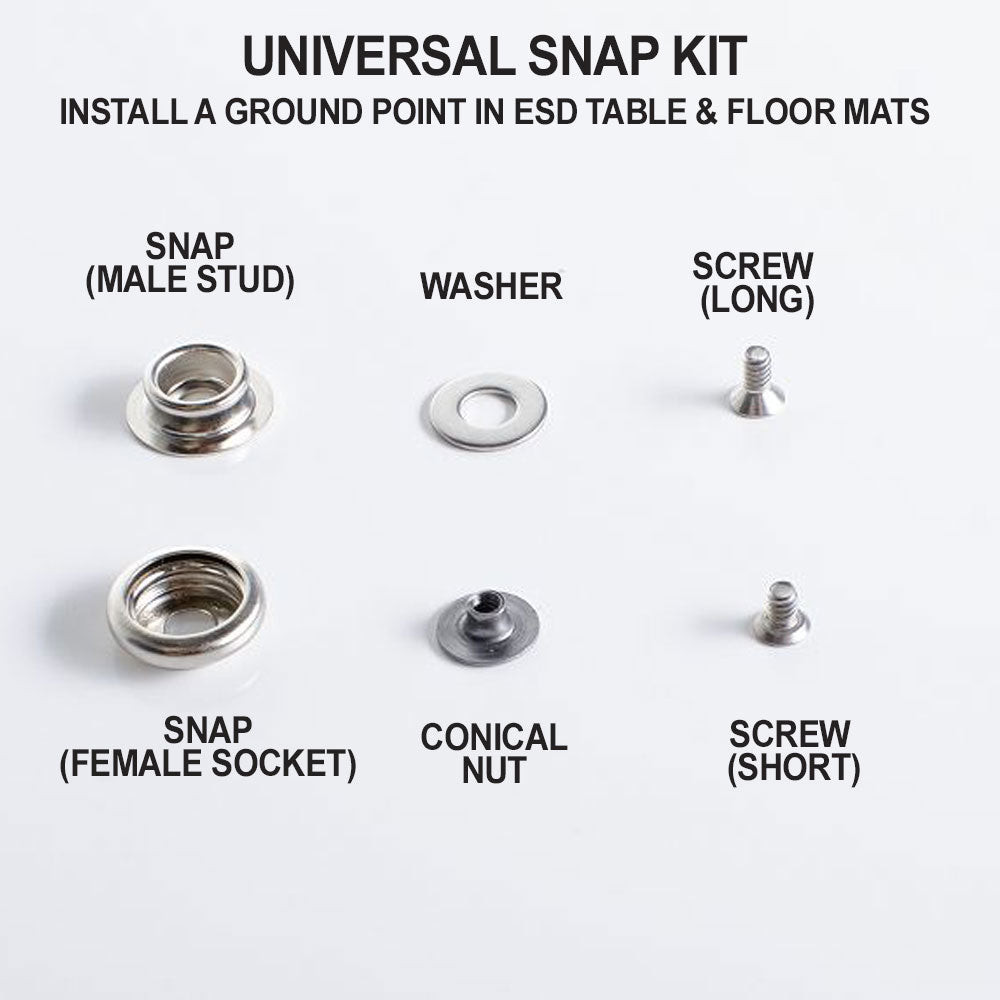

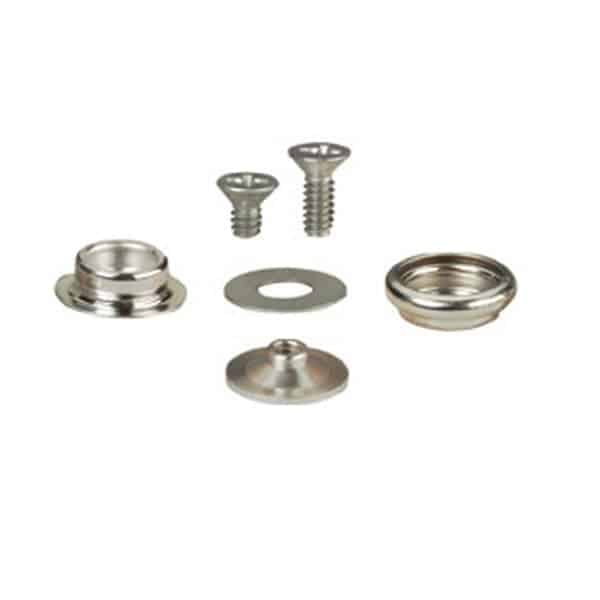

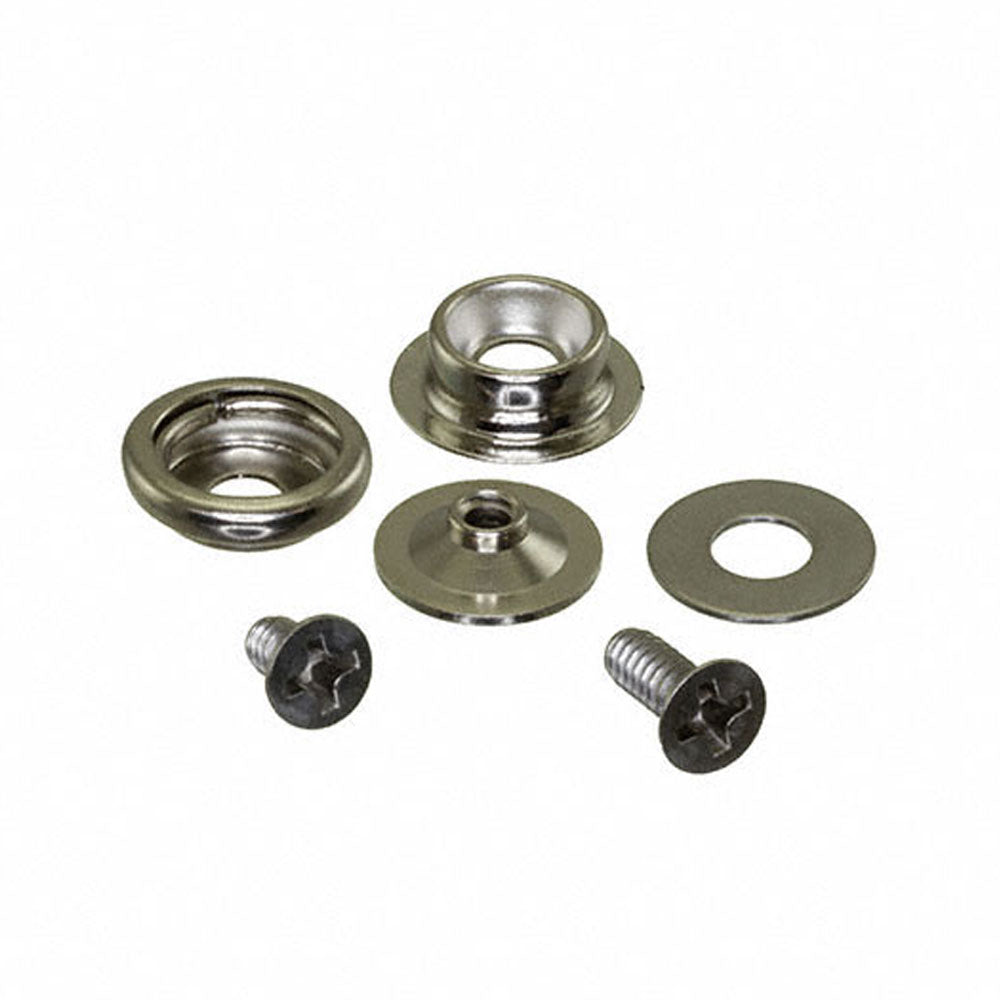

The Universal Snap Kit includes a 10 mm stud, 10 mm socket, threaded backing washer, conical nut, long screw, short screw, and ESD common point ground label. Everything needed to field-install a stud or socket on all soft materials up to 0.375" thick. Screws are 6-32 Flat Head Phillips machine screws; one 0.25" long and one 0.375" long. Punch a hole through the mat and screw on the socket or stud, whichever is preferred. All that is needed is a Phillips screwdriver.

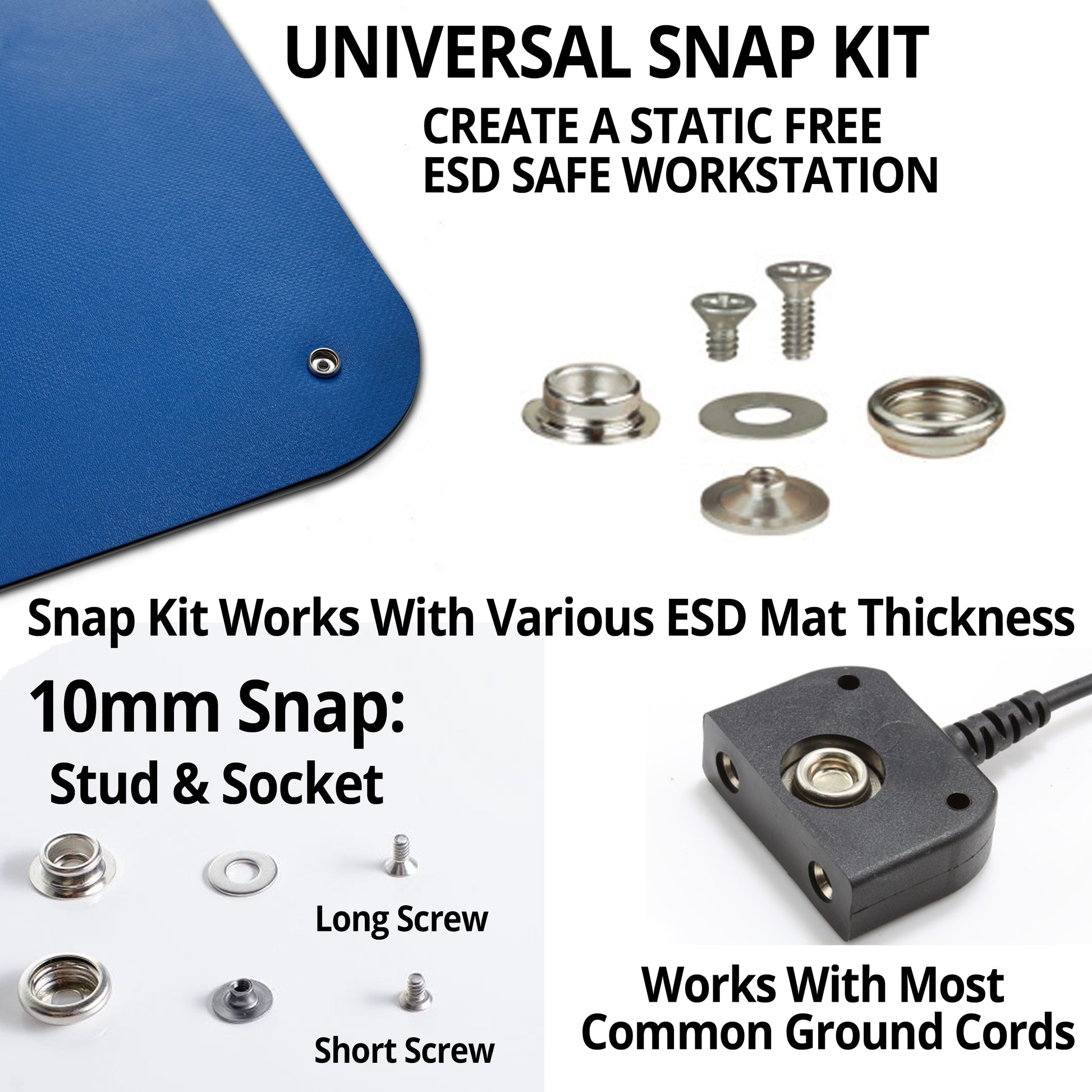

UNIVERSAL: Snap kit easily installs a ground point into a range of mat thicknesses. Most anti-static products require a 10mm snap to connect common point ground cords. The Universal Snap Kit can work with most commonly available ESD products

WORKS WITH MATS UP TO 0.375" THICK: Includes 2 screws for thick and thin materials. Screws are 6-32 Flat Head Phillips machine screws; one 0.25? long and one 0.375 long.

WORKS WITH SNAPS OR SOCKETS: Included in the kit is 1 each: 10mm socket, 10mm stud, washer and screw base. Works with most commercially available ESD grounding cords. Installs a 10mm snap or stud to ESD workstation materials. Remaining will be either a 10mm stud or socket, and either a long or short screw to be discarded or saved for another application.

INSTALLS WITH A SCREW DRIVER: Determine the position of the grounding snap. Punch a hole through the mat and screw on the socket or stud, whichever is preferred. All that is needed is a Phillips screwdriver.

Instructions

Determine the position of the grounding snap (one only per mat) and type of fastener you will be installing (socket or stud).

Punch a hole through the material with a small Phillips screwdriver or awl.

Select one of the screws as follows: Material less than 0.100" thick - short screw. Material greater than 0.100" thick - long screw

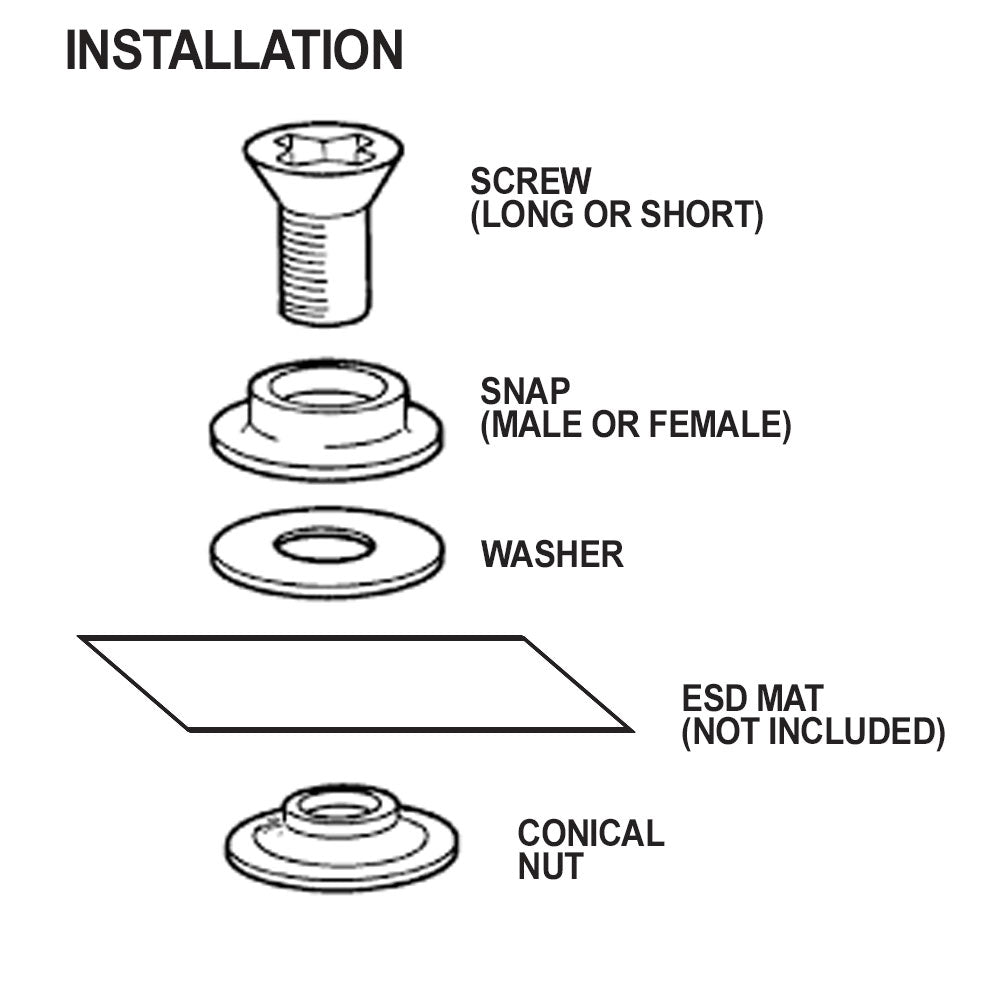

Insert the screw through the top on the snap stud or socket, the washer, and the material. Affix the assembly with the conical nut supplied with the kit and tighten down the screw using a Phillips screwdriver.

Remaining will be either a 10mm stud or socket, and either a long or short screw to be discarded or saved for another application.
