CP4070 Metal Bench Mount Ground

 CP4070 Metal Bench Mount Ground

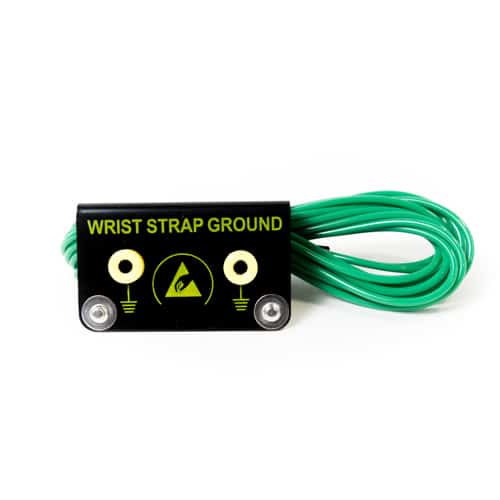

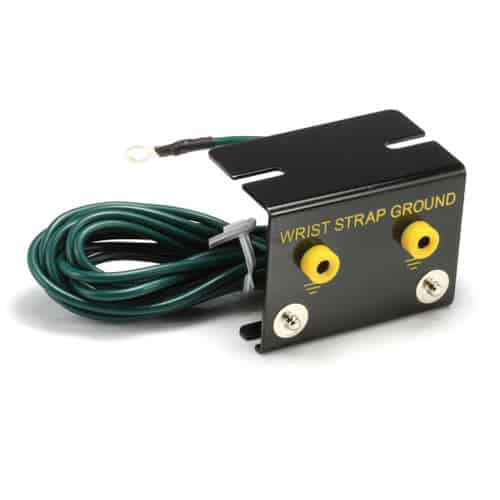

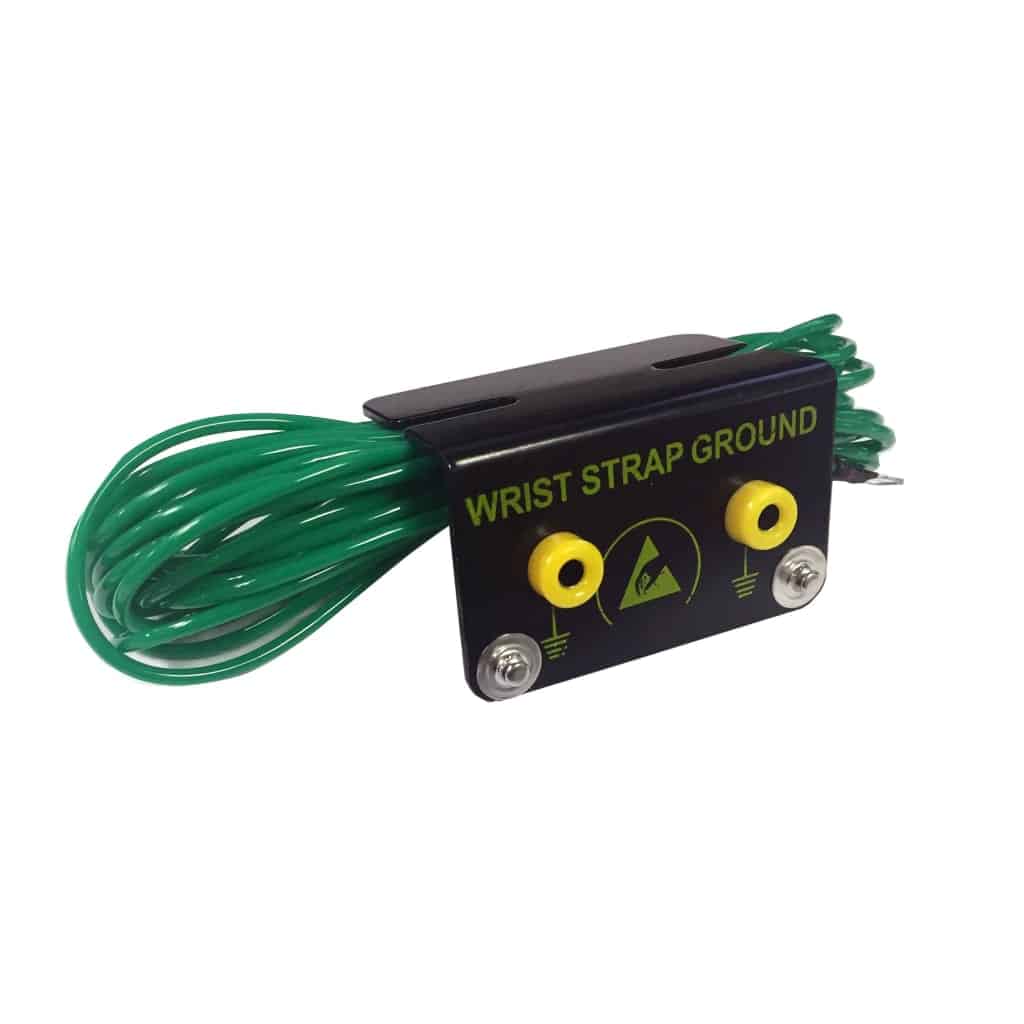

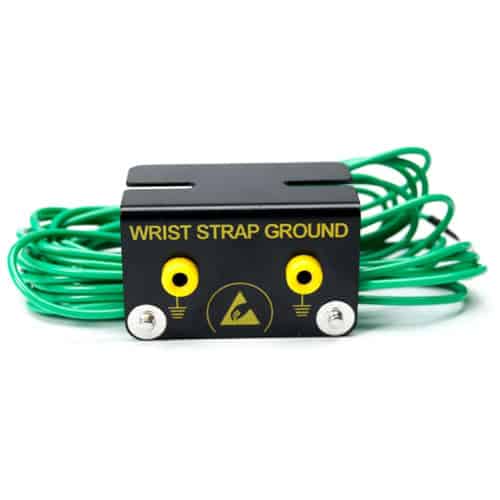

The CP4070 Metal Bench Mount Common Point Ground (CPT) offers the common ground point required by ANSI/ESD S-6.1 and ANSI/ESD-S20.20. The metal bracket mounts under the front edge of workstation to save valuable space. Includes a 15" long ground cable with #10 ring terminal connector. Two banana jack receptacles for secure ground connections. Two parking studs (4mm) for storing cords when not in use.

• Provides a common grounding point for one or two wrist straps
• Specially designed for use at ESD workstations and ESD table mats

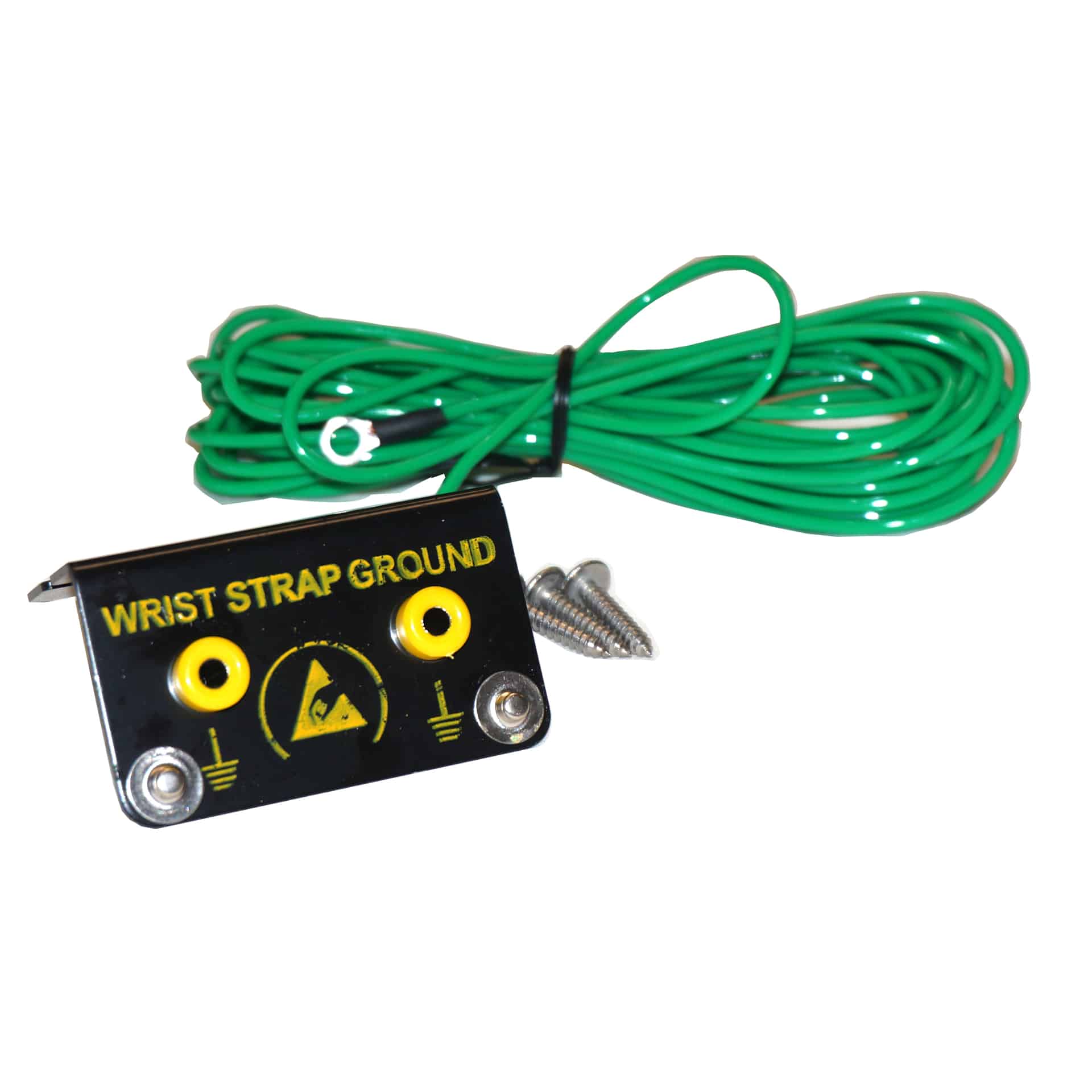

• Mounts under workbench with two included screws. Provides a grounding point that is convenient and off of the workstation so it will not interfere with work.
•  Includes two parking studs (4mm) for storing cords when not in use.
• Ring terminal at end of ground cord allows easy attachment to electrical ground
• Made of heavy duty 0.05 inch anodized aluminum with 15 feet ground wire

Meets or exceeds requirements of ANSI ESD-S20.20 and ANSI/ESD S-6.1
