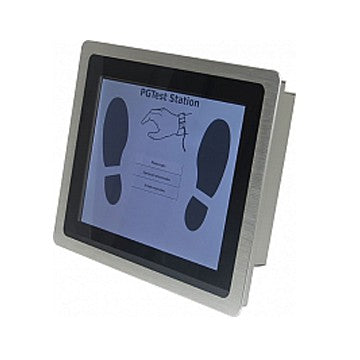

Warmbier 7100.PGT120.COM.TC18 Touch Screen Monitor TC18 with DATA Terminal

The Warmbier 7100.PGT120.COM.TC18 Touch Screen Monitor TC18 with DATA Terminal for the Wolfgang Warmbier PGT120.COM

Pair the Warmbier 7100.PGT120.COM.TC18 Touch Screen Monitor TC18 with DATA Terminal with a PGT120.COM tester unit and you receive real-time ESD testing with personnel identification, access control and central data maintenance. Also connect to a number of accessories such as a label printer, bar code scanner, RFID, database server and much more.

• Touchscreen 10" (capacitive)
• with integrated MiniPC (DATATerminal)
• LAN-Port RJ45
• 4 x USB2.0-Ports
• COM RS232 (DATA Port for PGT120.COM)
• Power supply: AC 100-240V 50-60Hz / DC 12/5A
• Housing: Aluminium, silver
• Dimension: 288 x 231 x 58 mm
• Mounting: Front-panel and VESA 57x75mm / 100x100mm
• Ready to integrate into existing infrastructure
• Multiple PGT120.COM stations can be networked
• Existing identity cards or time attendance cards can be re-used
• Open database interface
• Measurement data is ready to process after a few seconds
• Various databases can be used
•  Combination with existing access systems is possible
• Secure network communication

The following data is recorded in ASCII format:

• Value Footwear in Series: Value in kOhm
• Value Wrist Strap System: Value in kOhm
• Value of Left Foot: Value in kOhm
• Value of Right Foot: Value in kOhm
• Test OK: OK
• Test Failed: Error no.
