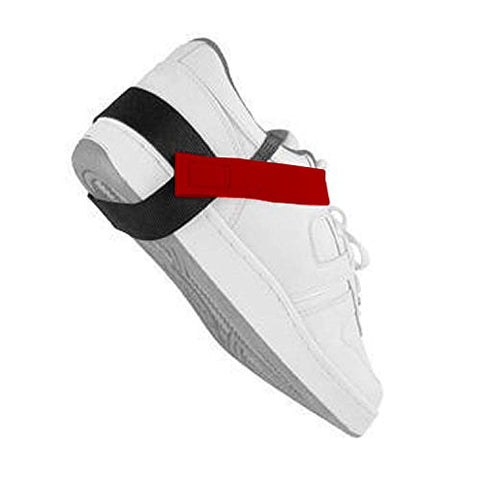

Adjustable ESD heel grounders eliminate static and ground mobile personnel in static sensitive areas

The HG1360 Adjustable ESD Heel Grounders are constructed from durable materials and features a stretch velcro closure strap to maximize fit and comfort. The cup of the HG1360 Heel Grounder is a symmetrical design that can be reversed when put on to double the lifespan.

• MOST POPULAR! Ground mobile personnel with our long-lasting stretch Velcro ESD heel grounders.
• LONG LIFE: The reversible cup design allows for longer life. When one side becomes worn, you can flip the strap over and use the other side to extend the life.
• COMFORT: The stretch Velcro closure strap is made with elastic which creates a comfortable but secure fit around shoe. The elastic strap stretches as you walk which makes for a more comfortable fit.
• SAFETY: A buried 1meg resistor is built into the strap for safety. Most importaly, the resistor complies with ANSI ESD S2020 industry standards.

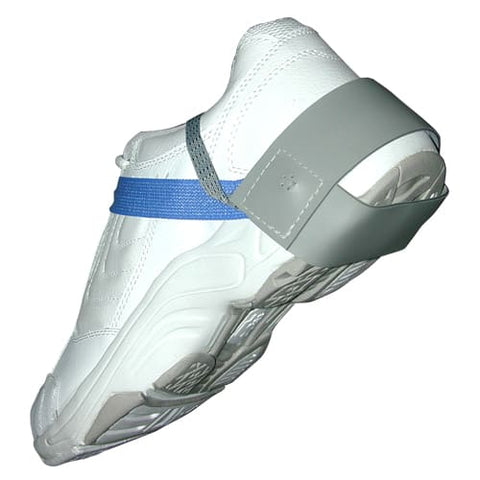

• OPTIONS: Available in Black, Red, Blue, and Orange colors.  Aditionally, Non-Marking Gray Rubber versions for clean environments to eliminate potental floors marks..

How Adjustable ESD Heel Grounders Work

The HG1360 Adjustable ESD Heel Grounders connect the person wearing them to ground via a proper floor mat or flooring material. Wearing the conductive ribbon inside the shoe or sock assures proper electrical contact with the user. The ribbon connects the users body to the conductive rubber of the cup to complete the circuit between the operator and the static controlled floor or mat.

A buried 1 meg ohm resistor ensures safety and is standard. HG1360 heel grounders must be worn on both feet to provide consistent grounding while in motion.

Meets or exceeds requirements of ANSI ESD-S20.20.

Benefits & Features of the HG1360 Heel Grounder:

• Stretch Loop closure fits a wide range of footware.
• Buried 1meg resistor for safety reasons
• 1.25" reversable cup design extends the life of the heel grounder

Specifications of the HG1360 Heel Grounder:

• Resistor: 1 meg ohm (+/- 5% tolerance), buried
• Rubber exterior: Ribbon: Conductive yarn in gray polyester ribbon
• Available in Black, Red, Blue, and Orange
