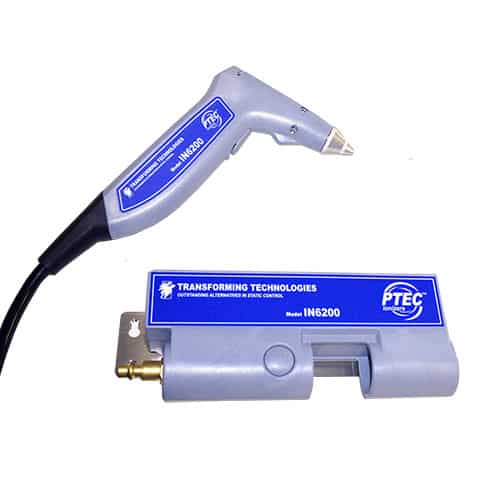

The PTEC IN6200 ESD Ionizing Gun is a point-of-use static neutralizer that removes charges as well as contamination by dislodging charged dust and debris.

The PTEC IN6200 ESD Ionizing Gun is a lightweight but durable static removal gun.  It provides superior control and targeted particulate removal for a wide variety of industrial applications. As a forceful neutralizer and blow-off gun, IN6200 easily removes stubborn particulate from surfaces. As a neutralizer, the IN6200 gets rid of troublesome charges responsible for the attraction of contaminants to product surfaces.

The IN6200 is designed for the user's comfort with its flexible cord and easy-to-use trigger switch. The controls are integrated into the gun body, including ionization monitoring light, replaceable long-lasting air filter and air output regulator. The cable is protected by a heavy vinyl covered metal shielding. The included power supply mounts with ease above or below the work surface. The unit's "shock-less" design prevents users from experiencing uncomfortable shocks if the ionizing point is touched. The IN6200 accepts both compressed air or inert gases, including nitrogen.

PTEC IN6200 ESD Ionizing Gun Features and Benefits

• EXCELLENT STATIC ELIMINATION: Fast static decay times (1000-100v in 2 seconds at 12″)

• PRECISION:  It provides superior control and targeted particulate removal for a wide variety of industrial applications.

• DURABLE DESIGN: The IN6200 is constructed from very durable Fiberglass Reinforced Plastic. A single integrated Air/Power cable eliminates bulky high voltage cables and strain relief protects cables from damage. An ergonomic handle and electronic trigger is designed for user comfort.

• QUICK DISCONNECT FITTINGS: The IN6200 uses Quick-Disconnect air fittings for quick installation and works with both compressed air or inert gases, including nitrogen.

• FILTRATION: The IN6200 comes with a filter to ensure your gun is providing clean air to your sensitive processes

• AC TECHNOLOGY: The IN6200 uses PTEC AC technology to produce a balanced output of air ions (+/-15 volts) with lower maintenance requirements than DC ionizers.

Durable Fiberglass Reinforced Plastic

The IN6200 ionizing gun is constructed with Fiberglass Reinforced Plastic (FRP).  FRP is a strong, impact-resistant composite material commonly used in the aerospace, automotive, marine, and construction industries. FRP repels dirt and stains making it an ideal surface for high-use manufacturing settings.  It can withstand coming into contact with corrosive liquids and chemicals without weakening or breaking.

The PTEC IN6200 ESD Ionizing Gun is built to last!

The IN6200 utilities Quick-Disconnect air fittings that provide a fast and easy connection to air lines.  The Quick Disconnect air fittings save time and simplifies installation and allows the gun to be quickly moved to other locations.  The fittings provide a solid connection to the air source and prevent air leakage.

A specialized piezoelectric high voltage transformer makes Ptec™ ionizers among the most reliable ionizers manufactured. Small, lightweight and stable, Ptec™ products are designed to remain in balance and to alarm when the HV output affects performance. The model IN5110 benchtop static eliminator produces a 68KHz AC output of approximately 2200V and a continuous stream of balanced air ions. Ionizers that use Ptec™ technology do not require calibration* and only minimal maintenance. AC technology to produce a balanced output of air ions (+/-15 volts) with lower maintenance requirements than DC ionizers. Emitter contamination and wear are virtually non-existent with AC ionizing guns.

Applications:

The IN6200 is designed to neutralize electrostatic charges in personal bench top environments, sensitive materials assembly, SMT, Electronics Assembly, Automotive packaging, clean room and laboratory environments.

Verification and Calibration:
The IN6200 ionizer comes factory calibrated and with a calibration certificate.  Ionizer performance can be tested and verified with a charge plate monitor. Important tests to perform are positive and negative decay times and ion balance. It is recommended to test ionizer performance at least 1 per year.
