Warmbier METRISO® 3000 ESD Audit Kit

Warmbier METRISO® 3000 ESD Audit Kit is a Complete ESD Audit Kit for Testing and Evaluations of an ESD Control Program.

The METRISO® 3000  ESD-Audit-Kit includes the relevant test instruments and equipment needed to perform ESD audits according to ANSI ESD.2020  and IEC 61340-5-1 and for qualification / verification of ESD control elements. The kit is built around the METRISO® 3000 digital high resistance meter.  It can take resistance measurements of 1K Ohm  - 10T Ohm.

Kit that includes the relevant test instruments and equipment needed to perform ESD audits

Measure electrostatic fields

Measure surface resistance

Analyze ionizers performance

Evaluate packaging materials

Evaluate garments

Measure flooring, work surfaces and furniture resistance

Measure temperature and relative humidity



Warmbier METRISO® 3000 ESD Audit Kit Applications:

Evaluate packaging materials
Evaluate garments
Measure flooring, work surfaces and furniture resistance
Measure electrostatic fields
Measure temperature and relative humidity
Analyze ionizers performance

Warmbier METRISO® 3000 ESD Audit Kit capable of measuring a wide resistance range and complete the tests required for an ESD protection plan.

The METRISO 3000 test kit measures a wide range of values: low resistance from 1KilaOhm to 1.2 TeraOhm. The kit comes with two 5lb disc probes and has an integrated temperature and humidity gauge. Measuring voltage can be set between 10 – 500V and also be varied if desired.

All measured values can be stored in the instrument and, with the help of the included software transferred to PC via USB cable. With the software program readings can be handled, stored and measurement protocols can be printed.

Quickly and accurately take resistance measurements with the Warmbier SRM110.  The LED readout will report the resistance in powers of 10 (example 10^10) and indicate if the surface is Insulative, Conductive or Dissipative.

This Wolfgang Warmbier SRM 110 uses parallel electrodes and concentric rings to accurately measure RTT, RTG, or resistivity for periodic verification, factory audits or test lab evaluation of the product. This meter is designed to verify incoming materials such as floor mats, table mats, bins and shelving in static controlled areas. Work surfaces, bags, wrist straps, footwear, packaging materials, garments, and ESD chairs can also be tested with the device.

The EFM51 is a full-featured hand-held field meter used to perform static surveys and evaluate charge accumulation in electronic manufacturing and in industrial operations. The EFM51 measures static voltages within ±20kV (20,000V) with a microcontroller that calculates the field strength (V/m) with a pre-selected distance (1cm, 5cm, 10cm and 20cm). Results are displayed via a 12 digit alphanumeric LCD screen. Two LED guide ring lights help position the field meter at the right distance from a charged test object.

EFM51 is supplemented by the EFM51.CPS “Charge Plate Set” which is used to check and verify ionizer efficiency and offset voltage (balance). The kit measures static decay times from +/- 1.000volts to +/- 100volts.  The kit includes a 6" metal plates and battery powered charger.

The EFM51 meets periodic test requirements per Compliance Verification ESD TR53 and conforms to ANSI/EOS/ESD (S4.1, S7.1, S12.1, S2.1).

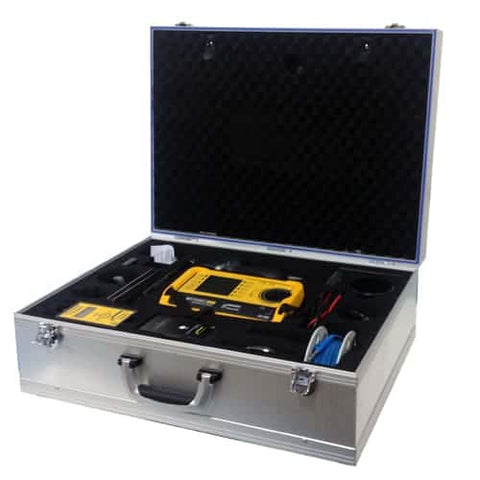

The kit includes a metal rolling case to house all of your ESD test equiptment.  The kit includes wheels and a telescoping handle.  All of the equipment fits into die cut foam that holds everything in place.

Features:

Rugged aluminum case with conductive foam inserts and ESD symbol
Upper compartment with a flap with Certificate of Compliances for all of the Equipment
Removable, telescopic handle with castors

The 7220.880.SET concentric ring probe is used with a surface resistance meter to take volume resistance, point-to-point resistance, surface resistance and resistance-to-ground measurements.

The Concentric Ring Probe (Ref: ANSI/ESD STM11.12) can measure the volume resistance of planar materials using a flat conductive metal plate (included).

The Concentric Ring Probe may be used for the resistance measurements of ESD packaging including static shielding and other bags.  The full part number is 7220.880.SET

Designed to test point-to-point (RTT) and point-to-ground resistance (RTG) in accordance with ESD Association Standards. The probe can be used to make measurements on floors, mats, workbenches, garments, seating or any other flat surface where the resistance between two points is required.

Additional Accessories:

Grounding Plug

8 socket grounding box

15' floor mat testing cable

Insulative Plate

Metal plate with 4mm snap

Ring probe

Hand probe
